Description
Rubber Self Healing Injection port and Syringe Filter PTFE for Mycology

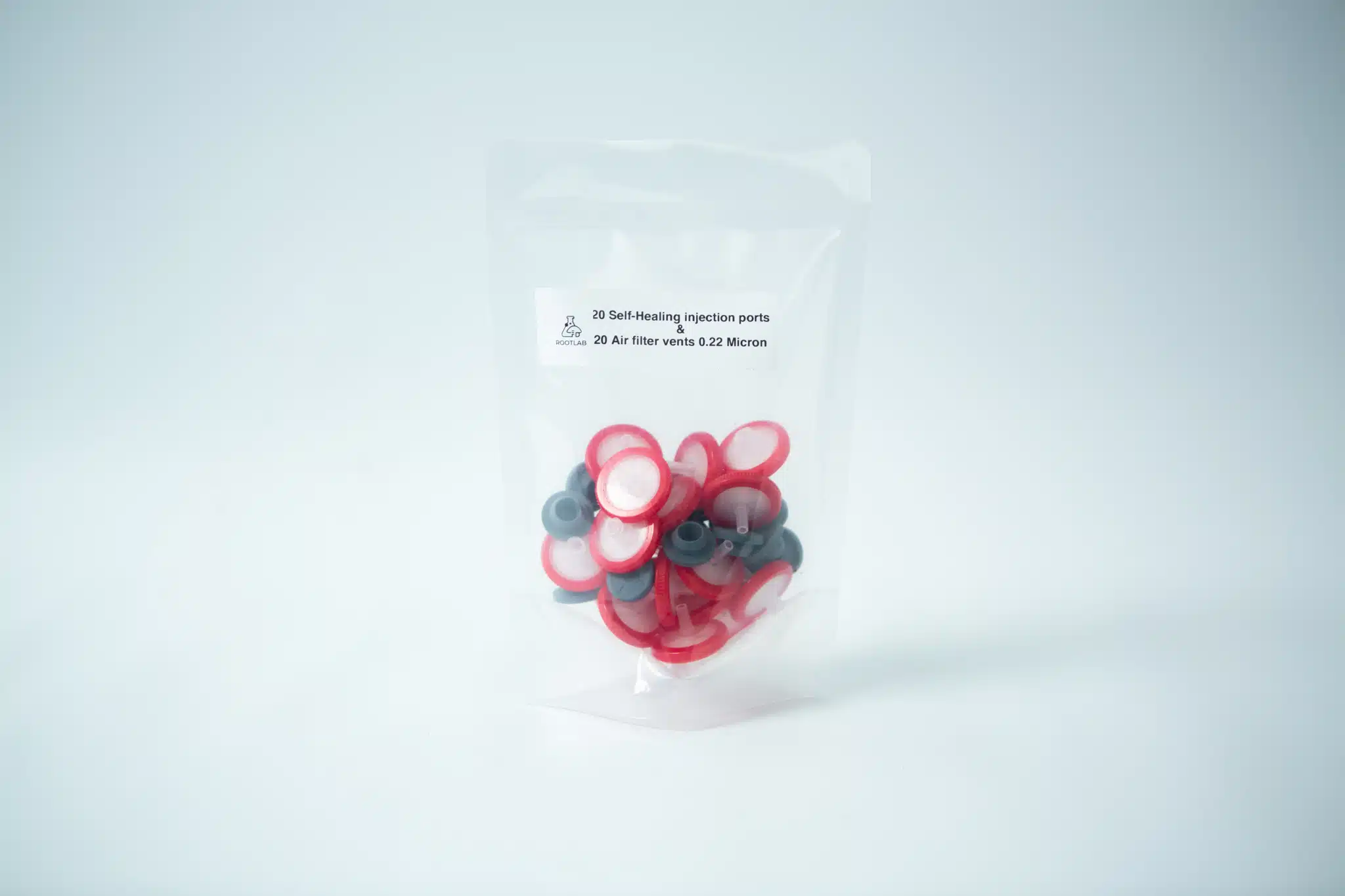

YOUR SET INCLUDES:
- 20x 20mm Rubber Stopper Self Healing Injection Ports Jar.
- 20x 13mm 0.22-micron PTFE (Polytetrafluoroethylene) syringe and air exchange filter (Colour may change depending on availability)- PTFE handles autoclave better than NYLON or any other materials.Syringe filter are Hydrophobic.
Please note that you will need to make two different size holes in your lids:
- Injection port(Grey) : 12 mm hole
- Syringe filter: 4 mm hole
The syringe filter has two sides to it. A thick protruding bit stays on top of the lid as per the pictures, and one that is smaller goes through the lid.
Please note you need to use
high temp RTV silicon with this product that needs to be purchased separately, and we do not sell it. Once you have made the lids, they need to dry/cure for at least 24 hours before they are ready to be used in the sterilizer.
DESCRIPTION:
Widely used for liquid culture, substrate jars, and Grain spawn jars. These items are autoclave-safe and have low to no risk of contamination. Stick your ports to the specified holes with a high temp gasket maker or red RTV silicone.
The injection port allows the needle to pass through multiple times while self-healing. The micron air filter has a vent of .22 microns, allowing the appropriate exchange of gases whilst remaining sterile. Once the adhesive is applied, it withstands autoclave temperatures of over 120 Celsius (250F) at 15psi for extended periods (recommended three hours maximum). Click on self-healing injection to find another alternative for this product.

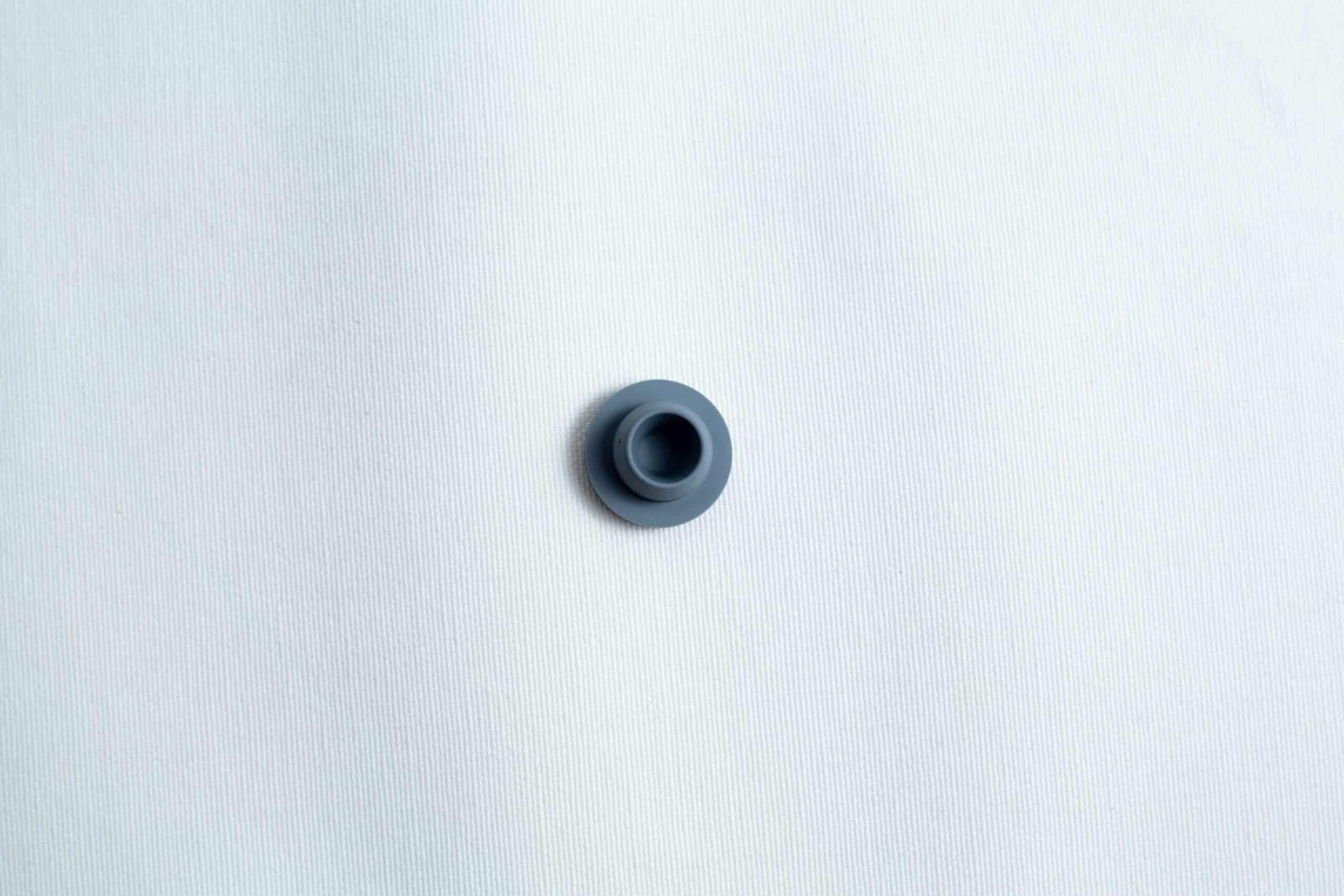

RUBBER INJECTION PORT SPECIFICATIONS:
- Material: Butyl Rubber
- Colour: Grey
- Size: 20mm
- For 13mm or 1/2 inch diameter hole opening.

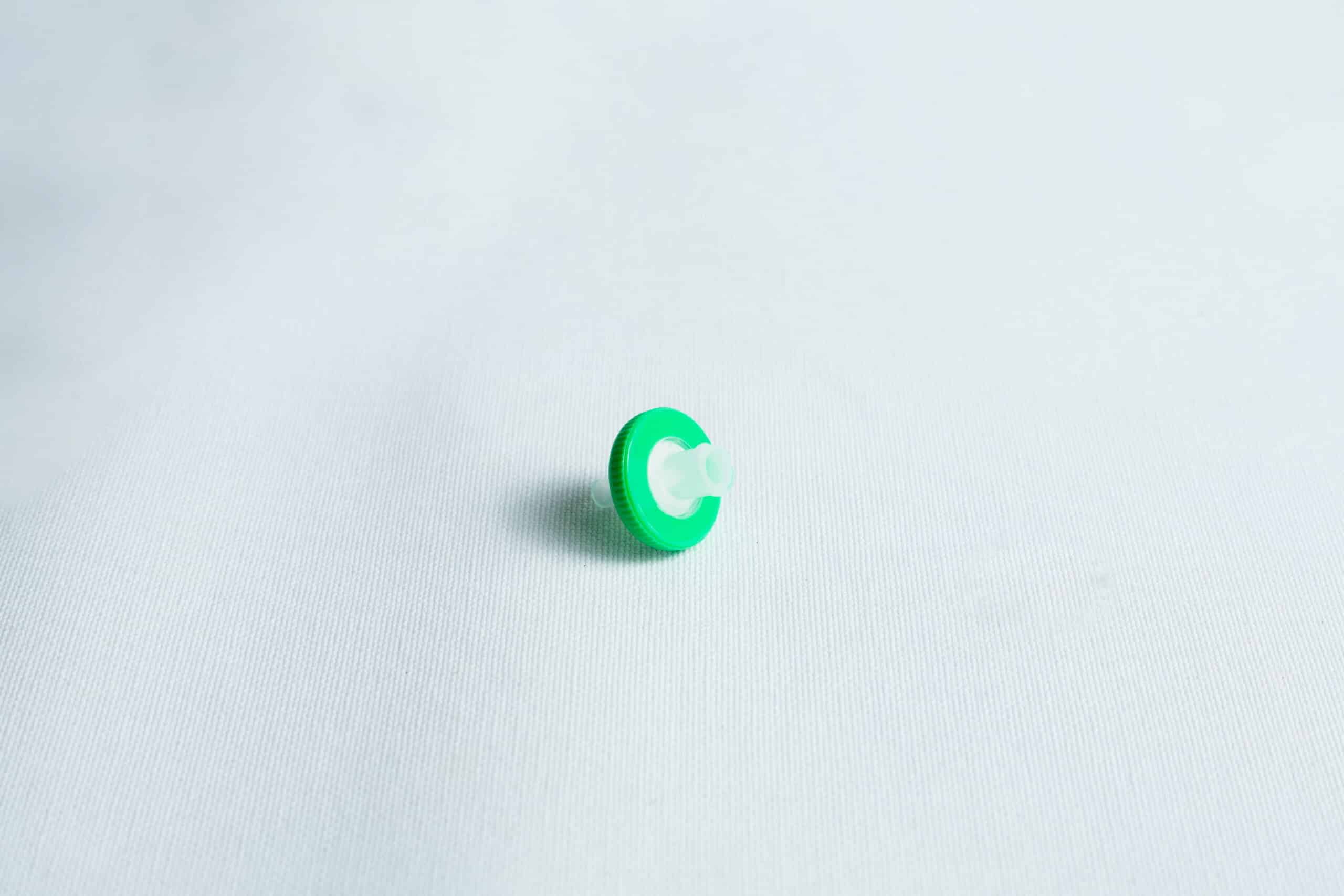

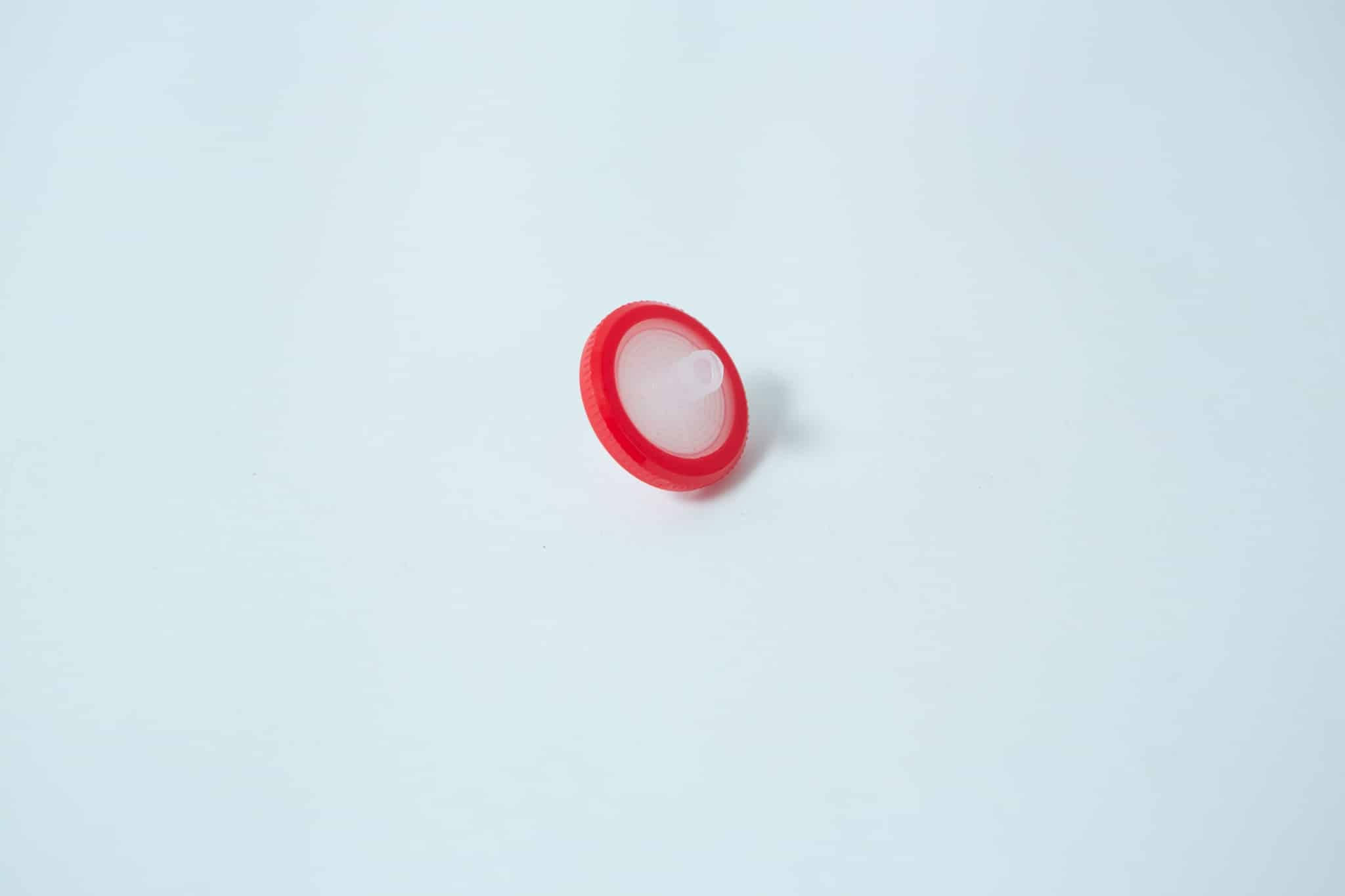

NYLON SYRINGE FILTER SPECIFICATIONS
- Material: PTFE (Polytetrafluoroethylene)Hydrophobic
- Colour: Green/Blue (or different colour depending on availability)
- Total size: approx. 17.5*17mm
- Filter outer diameter: approx. 13mm
- Mesh diameter: approx. 0.22 micron
All Products are shipped from Australia.
Shipping Cost – The cost of shipping will be displayed to you during the checkout process, determined by your location.
Handling Time – This item typically takes 0 to 2 days to be prepared for shipment. Please note that handling time may vary, especially during busy holiday seasons. We try to ship our products as fast as we can.
Shipping Time – The duration of shipping depends on the service chosen during checkout. Express post typically arrives within 5 to 10 days, while standard post may take 10 to 20 days. However, please be aware that we cannot guarantee shipping times. We ship worldwide and therefore the shipping times can vary drastically.
When you are ordering Liquid cultures and Agar plates, we require you to order express post so they reach you in the most vigorous state. We do not take any guarantee of availability or contamination if they are not ordered express post.
You must understand the law in your country before importing the culture, if the cultures are confiscated at customs we cannot reship the product or refund you.
